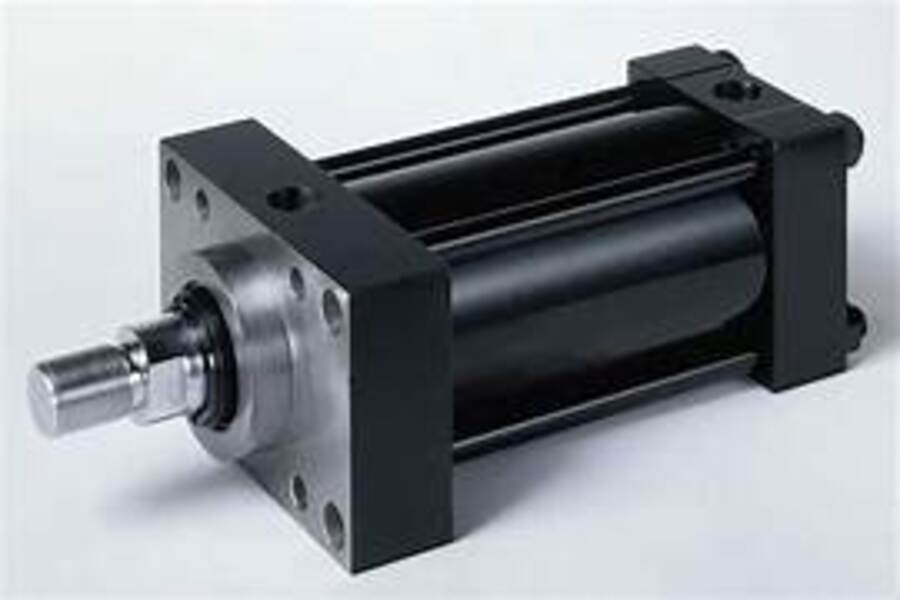

Hydraulic Cylinder 1Ton

Name: Hydraulic Cylinder 1Ton
Brand: K.P HYDRAULICS
Price: 6000.0 INR
Availability: InStock

6000.0 INR/Piece

Get a Price/Quote

Product Details:

Efficiency High
Connectivity Type Threaded Ports
Features Corrosion Resistant, Heavy Duty Construction, Precision Machined
Application Industrial, Construction, Lifting Equipment
Mounting Type Clevis / Flange Mount
Power Source Hydraulic
Temperature Range -20C to +80C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Hydraulic Cylinder 1Ton Price And Quantity

Minimum Order Quantity 1 Piece
Price 6000.0 INR/Piece

Hydraulic Cylinder 1Ton Product Specifications

Power Source Hydraulic
Mounting Type Clevis / Flange Mount
Body Material High-Grade Steel
Force 1 Ton
Temperature Range -20C to +80C
Flow Rate Up to 30 LPM
Operating Pressure Up to 250 Bar
Sealing Type Polyurethane/Nitrile Seals
Accessories Fittings, Mounting Brackets, Dust Covers
Efficiency High
Connectivity Type Threaded Ports
Type Hydraulic Cylinder
Structure Single Acting
Features Corrosion Resistant, Heavy Duty Construction, Precision Machined
Speed Customizable (on request)
Application Industrial, Construction, Lifting Equipment

Stroke Length 300 mm (customizable)
Rod Diameter 28 mm
Surface Treatment Hard Chrome Plated Rod
Bore Diameter 50 mm
Max Working Frequency Up to 40 cycles/min
Weight Approx. 13 kg
Painting/Coating Powder Coated Finish
Testing Pressure 375 Bar
Port Size 1/2" BSP

Product Description

A hydraulic cylinder converts hydraulic energy (fluid under pressure) into straight-line movement. Its commonly used in heavy machinery like excavators, loaders, presses, and industrial equipment.

Basic Specifications (typical)

Type: Single-acting or double-acting
Bore Diameter: 25 mm to 500+ mm
Rod Diameter: 10 mm to 250+ mm
Stroke Length: From a few mm up to several meters
Operating Pressure: Typically 1,5005,000 psi (1035 MPa)
Mounting Style: Clevis, flange, trunnion, or eye mounts
Material: Steel (hardened rod, honed tube)
Seals: Nitrile, polyurethane, or PTFE
Ports: Threaded hydraulic ports for fluid inlet/outlet

Engineered for Heavy-Duty Reliability

This hydraulic cylinder is constructed with a high-grade steel body, precision-machined to withstand rigorous industrial use. Its corrosion-resistant, hard chrome-plated rod and powder-coated finish contribute to a long service life even in demanding environments. Designed to deliver up to 1 ton of force, it is a reliable choice for lifting and construction needs.

Flexible Customization to Meet Your Needs

Offering customizable stroke length and speed, this cylinder can be precisely adapted to suit your specific application requirements. With several mounting options (clevis or flange) and various accessories, seamless integration into existing systems is assured. The 1/2" BSP ports and tested performance of up to 375 Bar further enhance its versatility.

Advanced Sealing and Optimal Efficiency

Utilizing polyurethane and nitrile seals, the cylinder maintains excellent sealing integrity under high-pressure conditions, reducing maintenance downtime. Its design supports up to 40 cycles per minute, with a maximum operating pressure of up to 250 Bar and flow rates up to 30 LPM, enabling efficient operation and consistent output in continuous-use environments.

FAQ's of Hydraulic Cylinder 1Ton:

Q: How can the stroke length and operating speed of the Hydraulic Cylinder 1 Ton be customized?

A: The stroke length (standard 300 mm) and speed of the cylinder can be tailored during the manufacturing process to fit your application requirements. Simply specify your preferred dimensions or speed needs when placing your order with the manufacturer or supplier.

Q: What type of applications is this hydraulic cylinder suitable for?

A: This cylinder is ideal for use in industrial machinery, construction equipment, and lifting applications where dependable, high-force actuation is required. Its heavy-duty construction and high efficiency make it suitable for rigorous environments.

Q: Where can I install this hydraulic cylinder and what are the mounting options?

A: The cylinder can be installed in various industrial settings with clevis or flange mounting types available, ensuring compatibility with most standard setups. The threaded 1/2'' BSP ports allow for straightforward hydraulic connectivity.

Q: What surface treatments and protections does the cylinder feature?

A: The rod is hard chrome plated for maximum corrosion resistance and wear protection, while the body is powder-coated to safeguard against environmental damage and provide a long-lasting finish.

Q: How is the hydraulic cylinder tested to ensure safety and performance?

A: Each unit undergoes testing up to 375 Bar to verify structural integrity and leak-free performance, ensuring it meets or exceeds operational safety standards before delivery.

Q: What accessories are included with the hydraulic cylinder?

A: Accessories such as fittings, mounting brackets, and dust covers are provided to support easy installation, secure mounting, and protection from contaminants.

Q: What are the benefits of using polyurethane or nitrile seals in this hydraulic cylinder?

A: Polyurethane and nitrile seals offer excellent resistance to wear, temperature fluctuations, and hydraulic fluids, ensuring reliable sealing, reducing maintenance, and extending service life of the cylinder.
